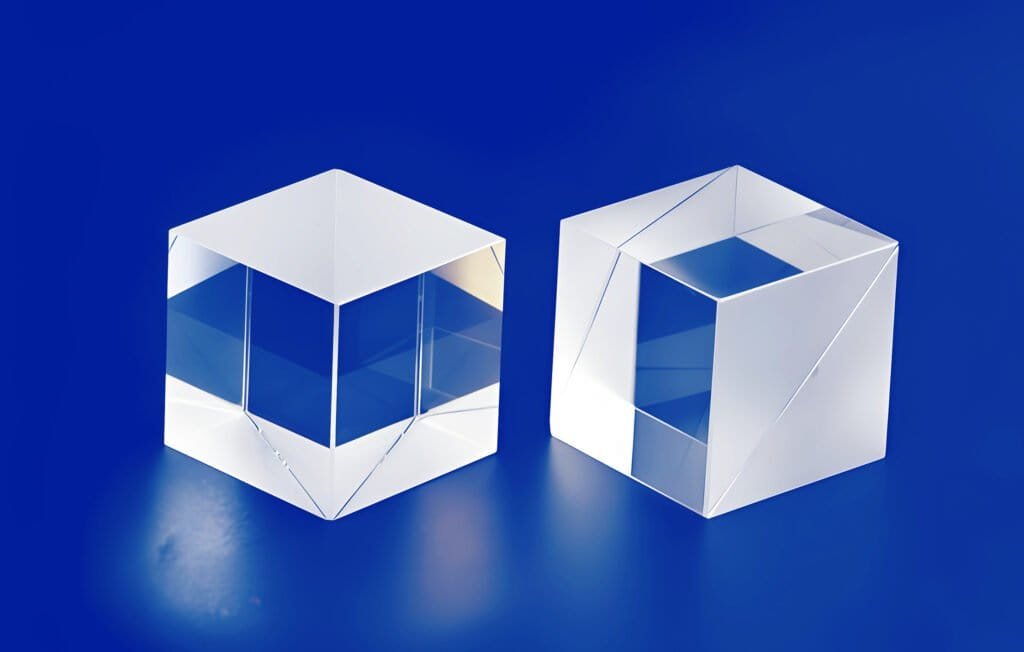

Quadrangular Prisms-Key Elements in Optical Systems
The quadrangular prism is a commonly used optical element, widely applied in optical experiments, instrument fabrication, and scientific research. It enables functions such as light splitting, beam deflection, and imaging through the refraction and reflection of light. This article provides a detailed overview of the structure, operating principle, and applications of quadrangular prisms.
- The basic structure of a quadrangular prism
A quadrangular prism is a polyhedral optical component with four polished facets, typically fabricated from transparent materials such as optical glass or plastic. Its geometry resembles that of a rectangular prism; however, the four edges are precisely ground and polished to ensure accurate control of light refraction and reflection. The facets are generally arranged at right angles or specific angular configurations, depending on the intended application.
- The operating principleof a quadrangular prism
The operation of a quadrangular prism is based on the principles of refraction and reflection of light. When light enters a quadrangular prism, it undergoes refraction inside the prism. It then reflects or refracts again on the prism surface before finally exiting from the opposite side. The specific design of the quadrangular prism causes particular deflection or splitting of light as it passes through the prism, thereby achieving different optical effects.
(1) Refraction
The direction of propagation of light changes when it travels from one medium to another. This phenomenon is known as refraction. A quadrangular prism can alter the direction of light propagation through the refraction mechanism.
- Reflection
The light is reflected at the surface inside a quadrangular prism, with the angle of reflection equal to the angle of incidence. By precisely designing the angle of the prism, specific deflection of light can be achieved.
- Light splitting
Quadrangular prisms can also facilitate spectral separation, that is, the process of decomposing composite light into monochromatic light of varying wavelengths. This is due to the fact that the refractive indices of a prism vary according to the wavelength of the light.
- The applicationsof quadrangular prisms
Quadrangular prisms exhibit extensive applications in the optical field. Here are some common application scenarios:
- Optical instruments
Quadrangular prisms are widely utilized in a variety of optical instruments, including telescopes, microscopes and lasers. These devices can be used to adjust the optical path, deflect light or achieve specific optical effects.
- Spectral analysis
In the field of spectral analysis, a quadrangular prism is utilized to disaggregate composite light into monochromatic light of varying wavelengths, thus facilitating the analysis of the spectral composition of the light source. This is of great significance in the research of chemistry, physics and astronomy.
- Laser technology
In laser technology, quadrangular prisms are used to adjust the direction and shape of the laser beam, ensuring precise focusing and transmission of the laser beam.
- Optical communication
In optical fiber communication systems, quadrangular prisms are used for modulating and splitting optical signals, enhancing the efficiency and stability of the communication system.
- Educational experiments
The quadrangular prism is a widely utilized instrument in optical educational experiments, designed to illustrate the phenomena of refraction, reflection and spectral separation of light, thereby assisting students in comprehending optical principles.
- The manufacturing and materials of quadrangular prisms
The manufacturing of a quadrangular prism necessitates high-precision processing techniques to ensure optimal optical performance. The materials most frequently used in such applications include optical glass (e.g. BK7, fused silica) and optical plastics. These materials feature high transparency, low scattering and stable optical properties, making them suitable for a range of applications.
During manufacturing, the facets of quadrangular prisms undergo precision cutting, polishing and coating to ensure accurate light refraction and reflection. Furthermore, the surface of the quadrangular prisms must undergo anti-reflection treatment to minimize light loss and interference.
- Conclusion
The quadrangular prism, as a key optical element, plays a significant role in optical experiments, instrument fabrication, and scientific research. Through the refraction and reflection of light, quadrangular prisms enable functionalities such as beam splitting, deflection, and imaging, and are widely used in optical instruments, spectral analysis, laser systems, and optical communication technologies. With the ongoing advancement of optical technology, the application potential of quadrangular prisms is expected to expand further. A detailed understanding of their structure, operating principles, and applications contributes to a more comprehensive grasp of fundamental optical mechanisms and facilitates the exploration of their innovative applications across diverse fields.
